> Aluminum Closure Sheet
printed aluminium closure sheet
- Alloy:3105
- Thickness0.15~0.25 mm (+/-0.005mm)
- Width 500~1000 mm (+0.5mm, -0mm)
- Length 500~1000 mm (+0.5mm, -0mm)
- Product description: printed aluminium closure sheet is used for the bottle cap market. Using a unique rolling technology, Haomei supplies aluminium sheets ideally suited to manufacture the caps for long neck wine bottles
PRODUCT INTRODUCTION
printed aluminium closure sheet for pilfer proof caps
1. Alloy: 8011, 3105
2. Temper: H14, H16
3. Pattern: rolled, degreased, pre-lubricated, pre-treated, lacquered
4. Thickness: 0.17-- 0.25mm
5. Width: 400 ~ 1000mm
6. Length: 500 ~ 1000mm
7.. Origin: China
High temperature resistant without any distortion and color change;
The paint won't peel off during production;
Tensile Strength: 140-145mpa
Yield Strength: 136-137;
Elongation: 2.5-3.0%;
Earing Rate: <2%;
It's the best material for medicine/wine caps;
Small order is acceptable.
Payment Terms: 30% by TT in advance as deposit and 70% balance by TT or L/C at sight;
Lead Time: Within 20 days after receiving deposit
Specifications
| Alloy | Temper | Thickness | Width | Length | Coil | Strip | Earing | Diagonal |
|
3105 |
H14, H16, H24, H26 |
0.15~0.25 mm (+/-0.005mm) |
500~1000 mm (+0.5mm, -0mm) |
500~1000 mm (+0.5mm, -0mm) |
500~1000 mm | 20~500 mm | 1 | ≤ 1mm |
Chemical Compostions printed aluminium closure sheet
| Alloy | Fe | Si | Cu | Mn | Mg | Cr | Zn | Ni | Ti | Other | Al | |
| Each | Total | |||||||||||
| 8011 | 0.60~1.0 | 0.50~0.9 | 0.1 | 0.2 | 0.05 | 0.05 | 0.1 | - | 0.08 | 0.05 | 0.15 | Remain |
| 3105 | 0.7 | 0.6 | 0.3 | 0.3~0.8 | 0.2~0.8 | 0.2 | 0.4 | - | 0.1 | 0.05 | 0.15 | Remains |
Mechanical Property for Direct Casting
| Alloy | Temper | Thickness (mm) | U.T.S (Mpa) | Elongation (%) |
| 8011 | H14 | 0.15~0.25 | 125~155 | ≧2 |
| 3105 | H14 | 0.15~0.25 | 150~200 | ≧1 |

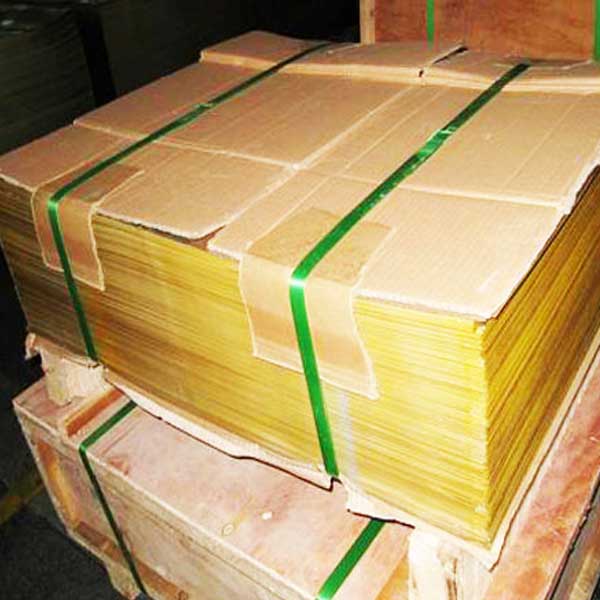

Packing & Delivery for printed aluminium closure sheet
