> Color Coated Aluminium

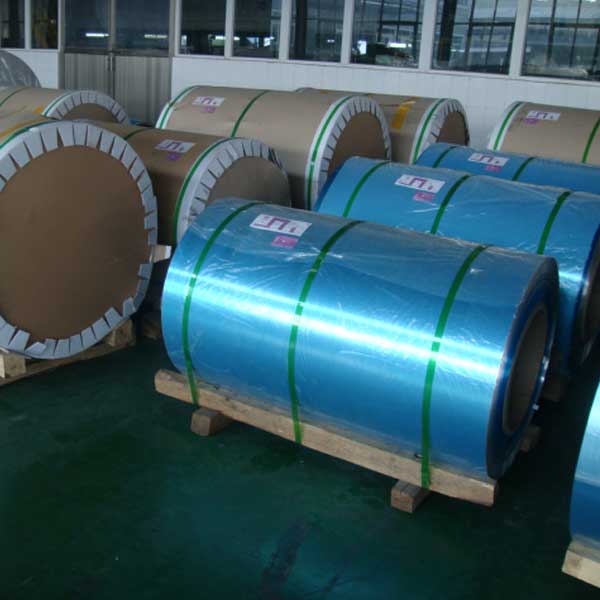

Color coated aluminum coil
- Type:Color coated
- Paint:EPOXY, PE, PVDF, RESIN
- Thickness:Any thickness ranging from 0.2mm to 1.5mm is available;
- Width:Any width ranging from 55mm to 2400mm is available;
- Product description: Color coated aluminum coil is aluminum coil after cleaning, coating, and baking. Surface of aluminum coil can be painted to any color. haomei color-coated aluminum coil and aluminum sheet coils mainl
PRODUCT INTRODUCTION
Color Coated Aluminium refers to the aluminum coil through coating and coloring treatment generally includes PE coated aluminum coil and PVDF coated aluminum coil. Color Coated Aluminium is widely used to manufacture aluminum composite panel, aluminum ceiling, roofing aluminum veneer, aluminum honeycomb panel, electronic products, etc. Coated Aluminum Coil is the most popular new material currently. It is especially suitable for interior decoration and AD boards
1. Product Introduction
Color coated aluminum coil is aluminum coil after cleaning, coating, and baking. Surface of aluminum coil can be painted to any color. haomei color-coated aluminum coil and aluminum sheet coils mainly come from henan which are the best raw materials suppliers domestically. Our coating paints are mainly from American PPG and Swedish Becker.
2. Application field
As per types of surface coating of paint, color coated aluminum coils can be divided into polyester (PE) coated aluminum coil, fluorocarbon (PVDF) coating aluminum coil and Epoxy coated aluminum coil.
According to the thickness of the coating, it can be divided into single-coated aluminum coil (4-20 microns); double-coated aluminum coil (25 to 28 micron) and triply-coated aluminum coil (35-38 micron).
DongChuan Color coated aluminum coil is widely used in the roofing and cladding system, ceiling system, curtain wall plate, shutter, gutter, composite panel, can, home appliances board and embossed aluminum coil.
3.Testing data
| Item | Test Item | Performance indicators for PE | Performance indicators for PVDF | |
|---|---|---|---|---|
| 1 | Color Difference | ΔE≤2.0 | ΔE≤1.5 | |
| 2 | Gloss Difference | ≤5 | ≤5 | |
| 3 | Coating Thickness | Two layers Min 23μm | Two layers Min 25μm | |
| Three layers Min 30μm | Three layers Min 34μm | |||
| 4 | Pencil Hardness | ≥HB | HB | |
| 5 | T-bend | ≤3T | ≤3T | |
| 6 | Adhesion | Grade 0 | Grade 0 | |
| 7 | Impact | ≥20kg.cm | ≥50kg.cm | |
| 8 |
|
4h No change | 4h No change | |
| 9 | Solvent Resistance | 200 times no break | 200 times no break | |
| 10 | Acidity Resistance | 5%HCL 24hrs No change | 5%HCL 24hrs No change | |
| 11 | Alkali Resistance | 5%NaOH 24hrs No change color | 5%NaOH 24hrs No change color | |
| △E≤2.0 | △E≤2.0 | |||
| 12 | Oil Resistance | 20＃oil 24hrs No change | 20＃oil 24hrs No change | |
| 13 | Salt Spray Resistance | 720hrs ≤Grade 1e | 720hrs ≤Grade 1e | |
| 14 |
|
≥5L/μm | ≥5L/μm | |
| 15 | Dirt Resistance | ≤5% | ≤5% |
4. Specification parameter
| 1 | Paint | EPOXY, PE, PVDF, RESIN |
| 2 | Aluminum Alloy | 1100, 1060, 3003, 3104, 3004, 3105, 3005, 5052, 5005, 5182, 5754 and so on |
| 3 | Temper | HO, H12, H14, H18, H22, H24, H26, H28, H32, H44, H46 and so on.; |
| 4 | Thickness | Any thickness ranging from 0.2mm to 1.5mm is available; |
| 5 | Width | Any width ranging from 55mm to 2400mm is available; |
| 6 | Color | Any color is available, as per your sample or our sample |
| 7 | Warranty | PE coating allows 5-10 years, PVDF coating allows 10-20 years |
| 8 | Package | Carton package and wooden pallet; 1Ton, 1.5Ton or 2 Tons as per your request |
| 9 | Certificate | Certificate of origin |
| 10 | Minimum order quantity | 1T |
| 11 | Date of delivery | 15days |
| 12 | Method of payment | T/T, L/C |
